RedEye Sentry

What RedEye Sentry does. It is a hardware and software product. RedEye sentry enables the connection of 6 infrared cameras with individual alarming. Alarming takes place on exceeding a temperature value.

Available as standard and lite versions. The Lite version operates on a Laptop.

RedEye Sentry Product Summary

• Thermal and visual support. Thermal cameras when boresighted to the visual camera
   overlay thermal hotspots, providing accurate accessment of alarm locations.
• High and low alarms for each infrared input are displayed in separate colors.
• High alarms are sent to Opto 22 outputs, a telephone, network,or printer.
• Connect alarms to PLC equipment with Opto 22 hardware.
• Time selectable filter to prevent alarming on moving objects.

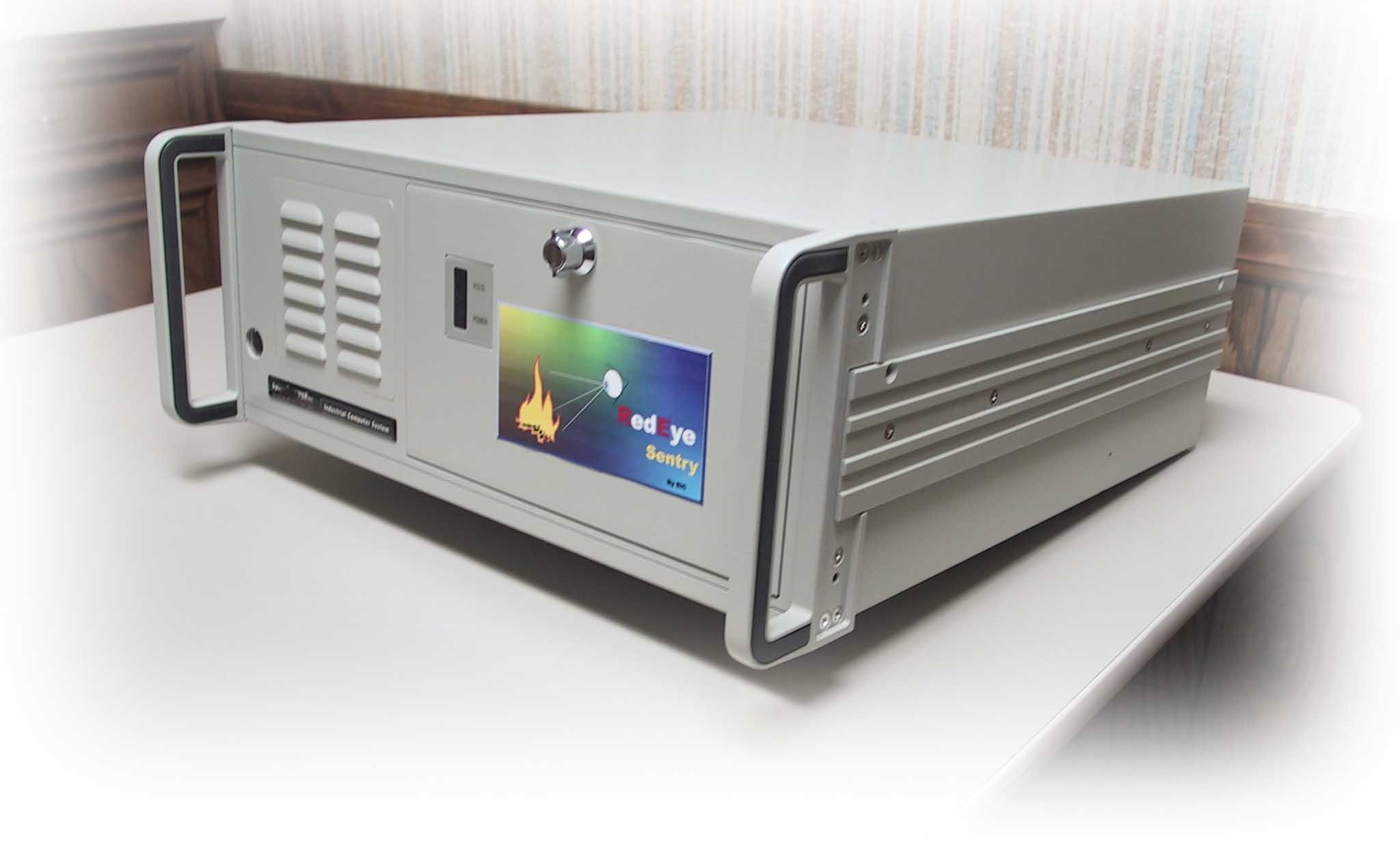

• Self contained - everything included, computer, cables, and 15 inch LCD monitor
   - cameras are not included.
• Watchdog timer reboots computer back into program automatically in case of
   program failure.
• Tamper resistant, mouse and keyboard are not required and put away after set up.
• Monitor up to 6 thermal cameras with PAL OR NTSC outputs.
• Monitor 3 visual and 3 thermal cameras as pairs.
• Easy setup.
• RACK MOUNTED COMPUTER CASE.

Product brochure

Contact EIC sales@eic-inc.com

Printing Notes

These files are in PDF format. You will need to download Adobe Reader to use these files.
In Adobe you can browse the file or print any of this material. The original size of the
RedEye brochure is 11x17 or tabloid. Use any large format printer to print this PDF.
Or you can exercise the printer options to shrink page size to fit to 81/2 x 11.
Manuals are suited for color printing. When printing to a color printer such a the HP cp 1700
click the item for simulation of HP LASER printer.
